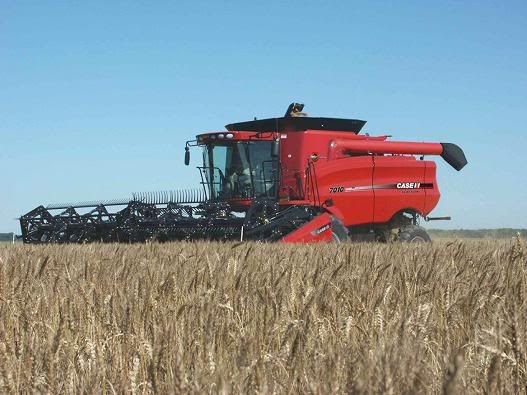

Here are some introductory pics of the new 7010... specs below







Built from 8010 Platform
–350 Hp rated, 390 Hp Peak w/Case IH 9L Engine (Iveco)
–315 bu Grain Tank
•Power-Plus CVT Drives w/In-Cab Rotor Reverse
•52” Wide Self-Leveling Cleaning System (8010 is 62” wide)
-- 8,370 sq. in. cleaning area
•Operator Selectable Rise/Boost Mode
•New Engine Installation

Grain Tank & Unloading System
–3.2 Bu/Sec Unload Rate (New Rating Based on ISO Tests)
–24’ Unload Tube Option
–8010 Grain Tank Capacity = 350 Bushels (New Rating Based on ISO Tests)
•Auto-guidance Ready Option Factory Installed
•Yield Monitor Standard
•New Color Displays


·
Registered
Joined
·
104 Posts
Well Im assuming that is a prototype. The unloading auger looks unique. And really, I mean really..I hope they paint the whole grain tank section black like the 8010. Cuz..well that is a lot of red. Anyway....I want to see some 2388 pics.


·
Registered
Joined
·
53 Posts
Discussion Starter · #4 ·
Here is the Case IH Combine lineup for 07

Class V - Axial-Flow 2577 265 HP Rated 290 HP boost, 230 Bu. Grain Tank

Class VI - Axial-Flow 2588 305 HP Rated 325 HP boost, 290 Bu. Grain Tank

Class VII - Axial-Flow 7010 350 HP Rated 390 HP boost, 315 Bu. Grain Tank

Class VIII - Axial-Flow 8010 400 HP Rated 450 HP boost, 350 Bu. Grain Tank

2577 and 2588 are belt drive rotors while 7010 and 8010 are CVT drive. All the drives, transmission and final drives have been really beefed up, along with a large number of other improvements. There is a picture of the 2588 on the 25XX thread.
